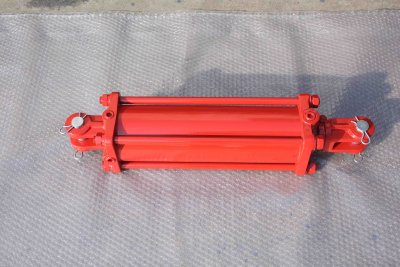

Tie Rod Cylinder 2500 PSI

Tie Rod Cylinder 2500 PSI

  • Min.Order Quantity: 50 Pieces
  • Supply Ability: 10000 Pieces per Month
  • Port: SHANGHAI
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Piece/Pieces
Verified Supplier PINGHU TIANLONG MACHINERY MANUFACTURING CO., LTD
| Factory
Experience:1998-10-12
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.01 CBM
  • Place of Origin:  Jiaxing
  • Brand Name:  TOLENG
  • Model Number:  TR2.5
  • Weight: 10.000 kg
Tie Rod Cylinder 2500 PSI BORE:2''-5''
STROKE: 4''-48''
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended Material:
TTR25-2004 1 1/8'' 2''*4'' 14 1/4'' 18 1/4'' 3/8NPT    1'' 15 Steel #45: Cylinder tube, Tie-rod
TTR25-2006 2''*6'' 16 1/4'' 22 1/4'' 16 QT400-15:Clevis(both sides), Piston
TTR25-2008 2''*8'' 18 1/4'' 26 1/4'' 18
TTR25-2008-ASAE 2''*8'' 20 1/4'' 28 1/4'' 19
TTR25-2010 2''*10'' 20 1/4'' 30 1/4'' 19
TTR25-2012 2''*12'' 22 1/4'' 34 1/4'' 20
TTR25-2014 2''*14'' 24 1/4'' 38 1/4'' 22
TTR25-2016 2''*16'' 26 1/4'' 42 1/4'' 24
TTR25-2018 2''*18'' 28 1/4'' 46 1/4'' 26
TTR25-2020 2''*20'' 30 1/4'' 50 1/4'' 27
TTR25-2024 2''*24'' 34 1/4'' 58 1/4'' 30
TTR25-2030 2''*30'' 40 1/4'' 70 1/4'' 35
TTR25-2036 2''*36'' 46 1/4'' 82 1/4'' 40
Tie Rod Cylinder 2500 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR25-2504 1 1/8'' 2.5''*4'' 14 1/4'' 18 1/4'' 3/8NPT    1'' 18
TTR25-2506 2.5''*6'' 16 1/4'' 22 1/4'' 20
TTR25-2508 2.5''*8'' 18 1/4'' 26 1/4'' 22
TTR25-2508-ASAE 2.5''*8'' 20 1/4'' 28 1/4'' 22
TTR25-2510 2.5''*10'' 20 1/4'' 30 1/4'' 23
TTR25-2512 2.5''*12'' 22 1/4'' 34 1/4'' 25
TTR25-2514 2.5''*14'' 24 1/4'' 38 1/4'' 27
TTR25-2516 2.5''*16'' 26 1/4'' 42 1/4'' 28
TTR25-2518 2.5''*18'' 28 1/4'' 46 1/4'' 29
TTR25-2520 2.5''*20'' 30 1/4'' 50 1/4'' 31
TTR25-2524 2.5''*24'' 34 1/4'' 58 1/4'' 35
TTR25-2530 2.5''*30'' 40 1/4'' 70 1/4'' 45
TTR25-2536 2.5''*36'' 46 1/4'' 82 1/4'' 50
Tie Rod Cylinder 2500 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR25-3004 1 1/4'' 3''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 22
TTR25-3006 3''*6'' 16 1/4'' 22 1/4'' 24
TTR25-3008 3''*8'' 18 1/4'' 26 1/4'' 26
TTR25-3008-ASAE 3''*8'' 20 1/4'' 28 1/4'' 27
TTR25-3010 3''*10'' 20 1/4'' 30 1/4'' 28
TTR25-3012 3''*12'' 22 1/4'' 34 1/4'' 31
TTR25-3014 3''*14'' 24 1/4'' 38 1/4'' 33
TTR25-3016 3''*16'' 26 1/4'' 42 1/4'' 35
TTR25-3016-ASAE 3''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 38
TTR25-3018 1 1/2'' 3''*18'' 28 1/4'' 46 1/4'' 1'' 42
TTR25-3020 3''*20'' 30 1/4'' 50 1/4'' 44
TTR25-3024 3''*24'' 34 1/4'' 58 1/4'' 49
TTR25-3030 3''*30'' 40 1/4'' 70 1/4'' 58
TTR25-3036 3''*36'' 46 1/4'' 82 1/4'' 67
Tie Rod Cylinder 2500 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR25-3504 1 1/4'' 3.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 29
TTR25-3506 3.5''*6'' 16 1/4'' 22 1/4'' 30
TTR25-3508 3.5''*8'' 18 1/4'' 26 1/4'' 34
TTR25-3508-ASAE 3.5''*8'' 20 1/4'' 28 1/4'' 35
TTR25-3510 3.5''*10'' 20 1/4'' 30 1/4'' 37
TTR25-3512 3.5''*12'' 22 1/4'' 34 1/4'' 39
TTR25-3514 3.5''*14'' 24 1/4'' 38 1/4'' 42
TTR25-3516 3.5''*16'' 26 1/4'' 42 1/4'' 44
TTR25-3516-ASAE 1 1/2'' 3.5''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 50
TTR25-3518 1 1/4'' 3.5''*18'' 28 1/4'' 46 1/4'' 1'' 47
TTR25-3520 3.5''*20'' 30 1/4'' 50 1/4'' 49
TTR25-3524 1 1/2'' 3.5''*24'' 34 1/4'' 58 1/4'' 58
TTR25-3530 3.5''*30'' 40 1/4'' 70 1/4'' 70
TTR25-3536 3.5''*36'' 46 1/4'' 82 1/4'' 72
Tie Rod Cylinder 2500 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR25-4004 1 1/4'' 4''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 33
TTR25-4006 4''*6'' 16 1/4'' 22 1/4'' 36
TTR25-4008 4''*8'' 18 1/4'' 26 1/4'' 39
TTR25-4008-ASAE 4''*8'' 20 1/4'' 28 1/4'' 41
TTR25-4010 4''*10'' 20 1/4'' 30 1/4'' 42
TTR25-4012 4''*12'' 22 1/4'' 34 1/4'' 45
TTR25-4014 4''*14'' 24 1/4'' 38 1/4'' 47
TTR25-4016 4''*16'' 26 1/4'' 42 1/4'' 49
TTR25-4016-ASAE 2'' 4''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 63
TTR25-4018 1 1/2'' 4''*18'' 28 1/4'' 46 1/4'' 1'' 55
TTR25-4020 4''*20'' 30 1/4'' 50 1/4'' 58
TTR25-4024-150 4''*24'' 34 1/4'' 58 1/4'' 64
TTR25-4024-175 1 3/4'' 4''*24'' 34 1/4'' 58 1/4'' 68
TTR25-4024-200 2'' 4''*24'' 34 1/4'' 58 1/4'' 73
TTR25-4030 4''*30'' 40 1/4'' 70 1/4'' 84
TTR25-4036 4''*36'' 46 1/4'' 82 1/4'' 95
Tie Rod Cylinder 2500 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR25-5004 1 1/2'' 5''*4'' 16 1/4'' 20 1/4'' 1/2NPT 1'' 53
TTR25-5006 5''*6'' 18 1/4'' 24 1/4'' 55
TTR25-5008 5''*8'' 20 1/4'' 28 1/4'' 64
TTR25-5010 5''*10'' 22 1/4'' 32 1/4'' 68
TTR25-5012 2'' 5''*12'' 24 1/4'' 36 1/4'' 77
TTR25-5014 5''*14'' 26 1/4'' 40 1/4'' 82
TTR25-5016 5''*16'' 28 1/4'' 44 1/4'' 87
TTR25-5016-ASAE 5''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 90
TTR25-5018 5''*18'' 30 1/4'' 48 1/4'' 1'' 92
TTR25-5020 5''*20'' 32 1/4'' 52 1/4'' 96
TTR25-5024 5''*24'' 36 1/4'' 60 1/4'' 106
TTR25-5030 5''*30'' 42 1/4'' 72 1/4'' 121
TTR25-5036 5''*36'' 48 1/4'' 84 1/4'' 136
PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER *A B *C *D *E F *G H I *J ROD THREAD PORT
TTR2.5-20- 2.00'' 2.37'' 10.25'' 2.00'' 1.01'' 2.00'' 3.75'' 2.25'' 1.12'' 2.06'' 2.12'' 2.62'' 1.125-12 UNF 3/8NPT
TTR2.5-25- 2.50'' 2.87'' 10.25'' 2.00'' 1.01'' 2.25'' 3.75'' 2.25'' 1.12'' 2.06'' 2.12'' 2.62'' 1.125-12 UNF 3/8NPT
TTR2.5-30- 3.00'' 3.37'' 10.25'' 2.00'' 1.01'' 2.25'' 3.75'' 2.25'' 1.12'' 2.06'' 2.12'' 2.62'' 1.250-12 UNF 1/2NPT
TTR2.5-35- 3.50'' 3.87'' 10.25'' 2.00'' 1.01'' 2.25'' 3.62'' 2.50'' 1.12'' 2.06'' 2.12'' 2.62'' 1.250-12 UNF 1/2NPT
TTR2.5-40- 4.00'' 4.37'' 10.25'' 2.25'' 1.01'' 2.25'' 3.56'' 2.62'' 1.12'' 2.06'' 2.12'' 2.62'' 1.250-12 UNF 1/2NPT
TTR2.5-50- 5.00'' 5.37'' 12.25'' 2.87'' 1.26'' 2.75'' 4.18'' 3.50'' 1.12'' 2.25'' 2.12'' 3.31'' 1.500-12 UNF 1/2NPT
*FOR 8.00'' ASAE STROKE: *A=12.25'' AND FOR 16.00'' ASAE STROKE:*A=15.50''
*FOR 8.00'' STROKE: *E=5.75''(2.00'' TO 3.00'' BORE)  *E=5.62''(3.50'' BORE)  *E=5.56''(4.00'' BORE)
*FOR 16.00'' ASAE STROKE: *E=9.00''(2.00'' TO 3.00'' BORE)  *E=8.87''(3.50'' BORE)  *E=8.81''(4.00'' BORE)
*FOR TTR2.5-2518 TO TTR2.5-2536; ROD THREAD= 1.125-12 UNF
*FOR TTR2.5-4016-ASAE TO TTR2.5-4036; *D=2.50'' *J=2.75'' ROD THREAD= 1.500-12 UNF
*FOR 16.00'' ASAE STROKE: *C=1.26''
SEAL TEMPERATURE RANGE:-30℃ /+100 ℃ (-22 ℉ /+212 ℉ )
SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE=2500 PSI
DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE
*FOR 16.00'' ASAE STROKE: *C=1.26''
SEAL TEMPERATURE RANGE:-30℃ /+100 ℃ (-22 ℉ /+212 ℉ )
SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE=3000 PSI
DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE
